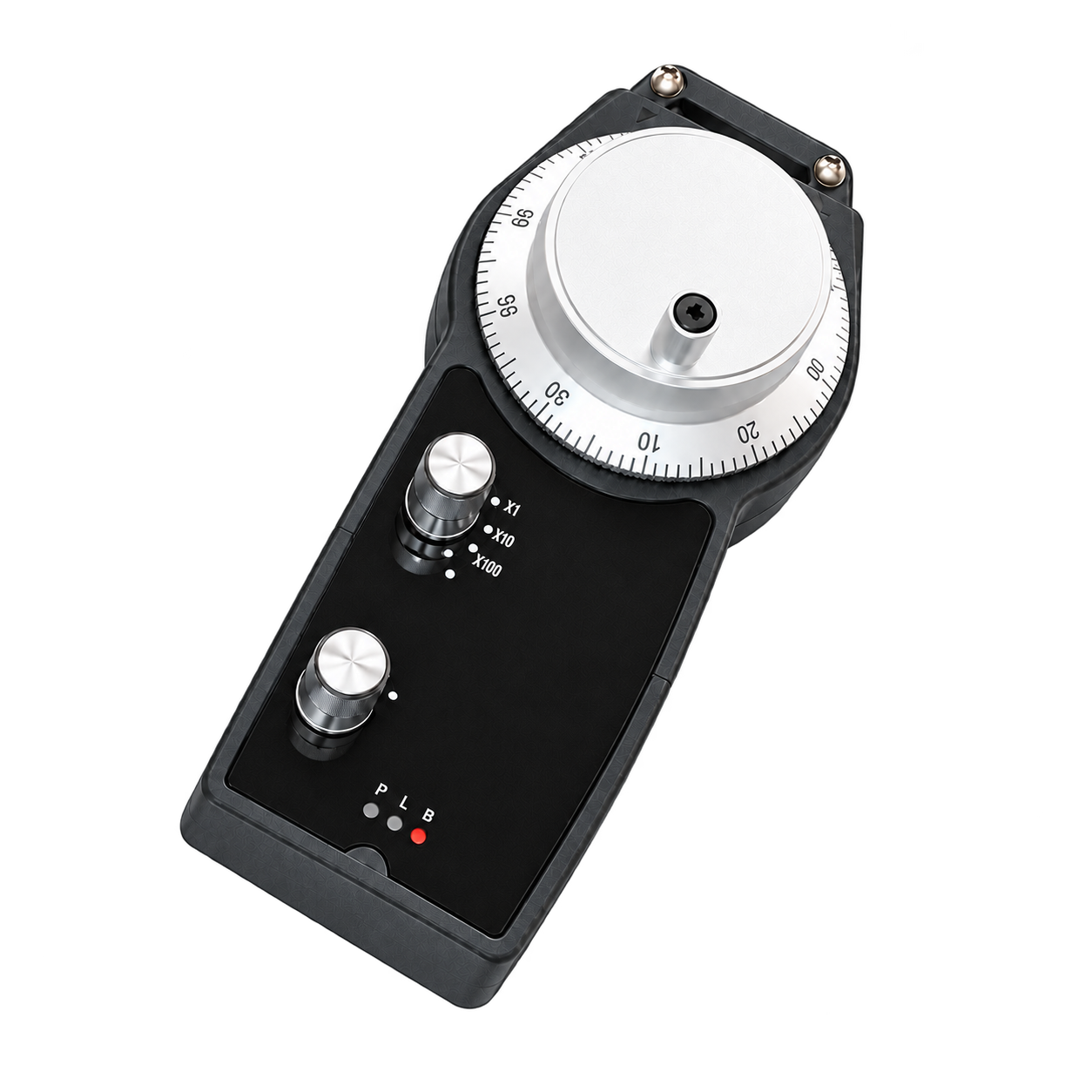

Basic Wireless MPGWireless handwheel pendant for CNC machines
The direct replacement for a wired spring-cable pendant. Handwheel, axis selector and magnification: everything needed for jogging, edge finding and tool touch-off, from anywhere within 50 m of the machine.
Basic MPG specifications
The numbers you will actually feel on the floor. The full electrical specification lives in the datasheet.
A wired MPG pendant, without the cable
The control sees exactly what it saw before. Nothing on the machine side changes except the failure mode you just removed.
100 PPR optical handwheel
One hundred pulses per revolution: the same feel as the pendant it replaces, so operators need no retraining.
Five-axis rotary selector
X, Y, Z and two auxiliary axes on a sealed rotary switch. Positions read as coded outputs at the receiver.
×1 / ×10 / ×100 magnification
Standard three-step increment selection, presented to the control on the rate lines it already reads.

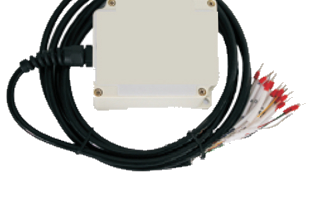

Drop-in A/B quadrature output
The receiver presents the identical signals as a wired MPG. No parameter edits, no control software changes.
Two months on two AA cells
Sleeps between movements, wakes on the first click of the wheel. Standard cells from any shop; no proprietary pack to order from us when one runs flat.
32 sets on one shop floor
Each pendant is address-paired to its receiver. Neighbouring machines never pick up each other's pulses.
Where the operator stands decides the model
Basic is the right unit for jogging from outside the guarding. If operators work inside the envelope with guards open, the safety hardware on Advanced is not optional.
View Advanced MPG| Feature | Basic | Advanced |
|---|---|---|
| Handwheel, axis selector, magnification | Yes | Yes |
| 50 m wireless link, 32 units per floor | Yes | Yes |
| Receiver axis output | 5 axes | 6 axes |
| E-stop with emergency relay output | N/A | Yes |
| Enable (deadman) button | N/A | Yes |
| Extension key outputs | N/A | 3 |
| Antenna | Internal | External, receiver side |
Supported controllers
Fanuc
Siemens
Mitsubishi
Fagor
Heidenhain
Others
What's in the box
Request a wireless MPG quote: one working day
Send machine make, control model and MPG port type. We ship the unit pre-configured for your pinout.
